Chicago Screw Nickel Plated 8 x 5 mm
- Artículo
- # MT018511
Chicago Screw available in different sizes: 4 x 4, 5 x 4, 5 x 5, 6 x 4, 8 x 4, 8 x 5, 10 x 4, 12 x 5 and 15 x 5 mm. Coating: Nickel Plated.
Tamaño del tornillo
Tamaño del paquete

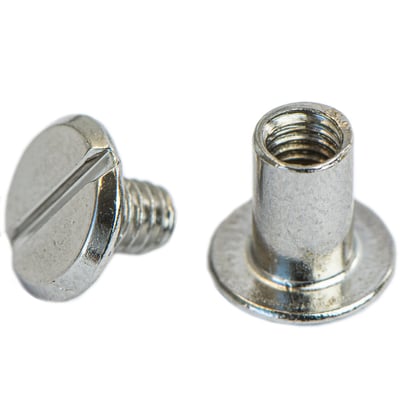

Chicago Screw Nickel Plated
Chicago screws are essential for securely joining multiple layers of BioThane® or other materials when making collars, dog leashes, and other DIY projects. The thickness of the material determines the correct Chicago screw size. Choose a Chicago screw whose screw nut is approximately 2 mm shorter than the total thickness of the materials being joined. Tip: secure this product as firmly as possible by applying a drop of strong glue (e.g. Loctite) between the two parts before tightening the screw.
Specifications
- Material: Steel
- Finish: Nickel Plated
- This product in available in different sizes*:
| Size | Dimensions (BxAxCxS) |
| 4 x 4 mm | 4 x 4 x 10 x 3 mm |
| 5 x 4 mm | 5 x 4 x 10 x 3 mm |
| 5 x 5 mm | 5 x 5 x 10 x 3 mm |
| 6 x 4 mm | 6 x 4 x 10 x 5 mm |
| 8 x 4 mm | 8 x 4 x 10 x 5 mm |
| 8 x 5 mm | 8 x 5 x 10 x 5 mm |
| 10 x 4 mm | 10 x 4 x 10 x 5 mm |
| 12 x 5 mm | 12 x 5 x 10 x 5 mm |
| 15 x 5 mm | 15 x 5 x 10 x 5 mm |
*Not all sizes of one product are available in a Package Deal, but they can still be found & bought individually.
| Número de artículo | MT018511 |
|---|---|
| Se vende por | unidades |
| Peso | 2.4 gramos |
| Color | Silver Metallic |
| Material | Nickel, Steel |
